Détails de produit
Lieu d'origine: Chine
Nom de marque: CHNSpec
Certification: CE
Numéro de modèle: FS-500 600 620
Conditions de paiement et d'expédition
Quantité de commande min: 1
Prix: Négociable
Détails d'emballage: Boîte de carton avec le paquet de mousse
Délai de livraison: 5 à 7 jours
Conditions de paiement: T/T, Western Union et MoneyGram
Capacité d'approvisionnement: 1000 par mois
Product Introduction

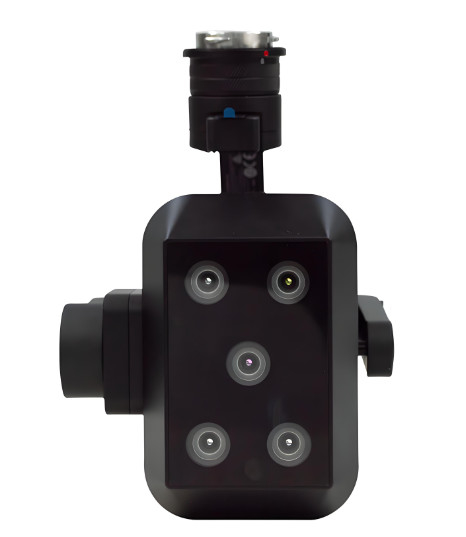

FigSpec® series multispectral cameras of CHNSpec Technology. include FS-500, FS-600 and FS-620. FS-500
is composed of 4-channel multispectral and 1 RGB, and the effective pixel of RGB is up to 11.9 million.
FS-600 has 6-channel multispectral, and the effective pixel can reach 1.3 million pixels. FS-620 is composed
of 4-channel multispectral, 1 RGB and 1 channel thermal infrared LWIR, and LWIR can directly output
temperature data.
Features
DJlX-Port, real-time reflectivity calculation on the Pilot control machine
All channels can be synchronized in 100ms at the fastest
DJIX-Port power supply, 512G solid-state drive
DJIM300/M350 RTK drone customization, plug and play
Product Advantages
Innovative standard dual red-edge vegetation sensitive bands
400nm~1000nm range bands can be customized
Using DJI Pilot integrated control, easy to use
Product List
|
Multispectral Camera Downstreen light sensor Calibration gray |
|
Software USB flash drive ·Power cord ·HDMI signal cable Certificate of Conformity ·Hard Suitcase /Warranty Card
Note: If you need other accessories, please consult sales staff . |
Parameters
[1]Standard wavelengths aalow customization of the following 18 wavelength combinations(please contact sales staff for details on combination methods an costs:
410nm@35nm,450nm@30nm,490nm@25nm,530nm@27nm,555nm@27nm,570nm@32nm,610nm@30nm,650nm@27nm,660nm@22nm,680nm@25nm,720nm@10nm,720nm@15nm(Qualcomn ),750nm@10nm, 780nm@13nm,800nm@35nm,840nm@30nm, 900nm@35nm,940nm@30nm(tolerance±5nm)
